Overview
APPLICATIONS
Pumping drainage water, Storm water, Supplying water from setting tanks in water works, Irrigation and agriculture for lift irrigation, Circulation of hot or cold water in industry, Air - conditioning plants, Power stations, Textile mills, Sewage handling, Flood control
CONSTRUCTIONAL FEATURES
- Pump Casing: Horizontal / Vertical end suction high efficiency volute type with Top / side / 45 degrees orientations. Delivery flange and supporting feet are cast integral with the casing.
- Impeller: Non clog - Semi open / Enclosed type and balanced dynamically. Hydraulically balanced by balancing holes / back vanes.
- Shaft: Made of high tensile steel, accurately grounded. Supported by deep groove ball bearings and thrust bearing housed in the bearing housing.
- Stuffing Box: Gland packed supply is standard for liquids having temperature up to 90oC Mechanical seal, can be supplied against request.
- Bearing: Deep groove ball bearings and trust bearing. Standard lubrication - Oil (except MF 200 pump) MF 200 is with grease lubrication. Direction of Rotation: Clockwise viewed from driving end.

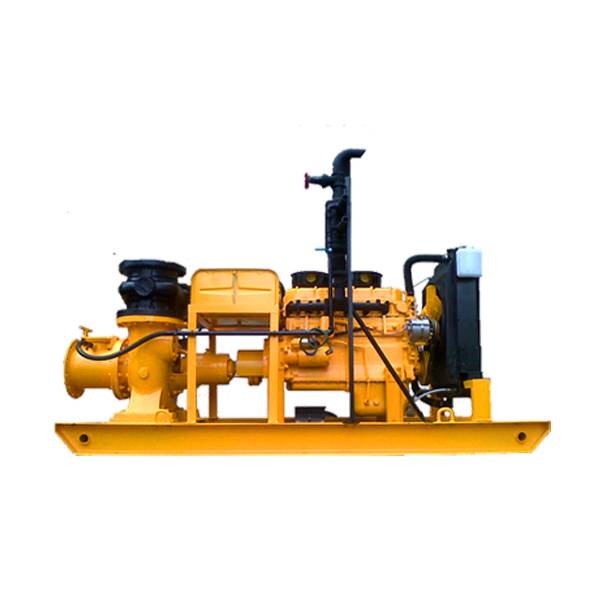

- Drive: Suitable for coupling with electric motors, IC engines either directly or through belt drives / gear box.
- Flanges: Flanges shall be drilled as per BSEN 1092, PN 16 flat face except MF 17½ - 20, MF 55 - 60, MF 60 - 65 pumps.
